M5VPN
Dark-themed VPN app for iOS and Android with VLESS protocol and App Store approval
iOS App
Android app
Client
Client needed a custom-branded VPN app for distribution in the App Store, and the same product on Android. Required a dark, minimalist design and fast connection via modern protocols.
Problem
VPN is one of the hardest categories to get approved in App Store. Apple regularly rejects VPN apps for vague reasons. The client needed an app that passes review, connects via VLESS (a modern protocol that avoids detection), and has a polished dark UI. The app had to work with the client's existing server infrastructure.
Solution

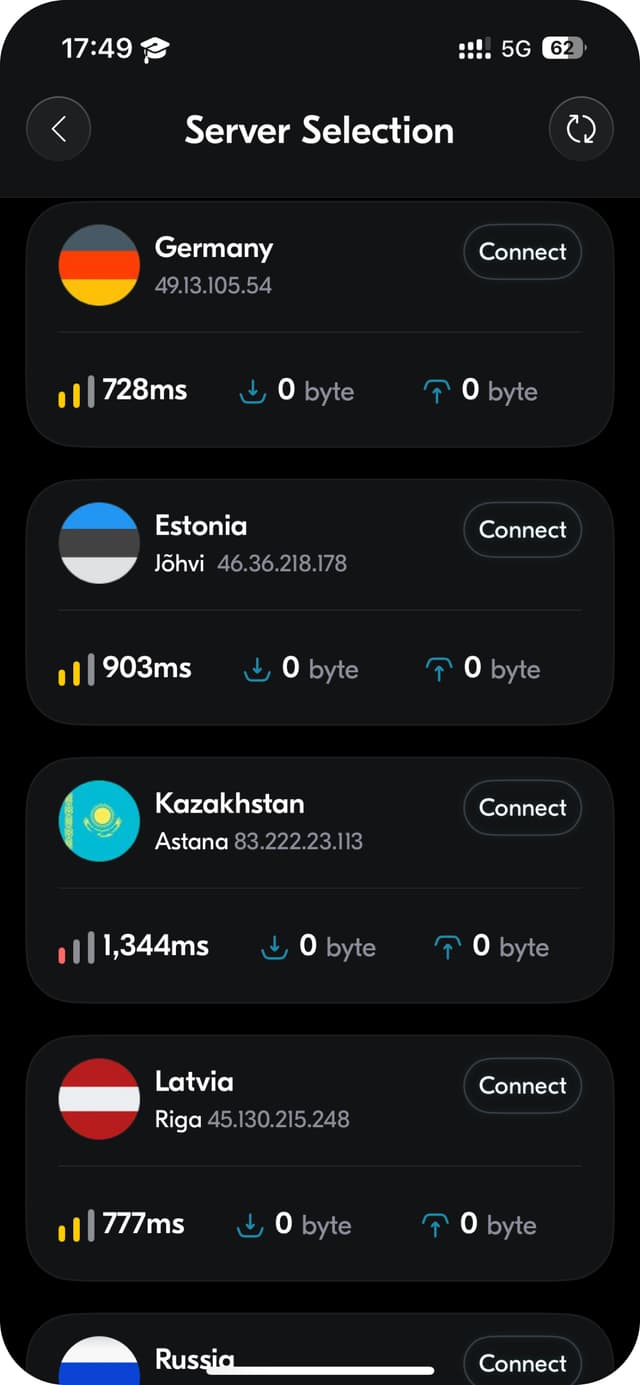

SwiftUI app with forced dark color scheme. MVVM architecture with global AppState singleton and TunnelManager for NetworkExtension management. VPN tunnel via NETunnelProviderManager with LibXray (C binding) and Tun2SocksKit for SOCKS5 bridging. VlessLinkParser handles vless:// URI parsing. Configuration priority: server-provided xray_config JSON first, fallback to VLESS link parsing via LibXray. Server selection with country flags, IP display, and traffic statistics. App Group shared container for passing config to the PacketTunnelProvider extension. The Android app is native Kotlin with Compose and Material 3 (light and dark themes), MVVM with ViewModel, Ktor for networking and a V2Ray/VLESS core for the tunnel; it adds split tunnelling, so chosen apps can bypass the VPN.
Results
- Approved and live in App Store
- VLESS protocol via Xray core

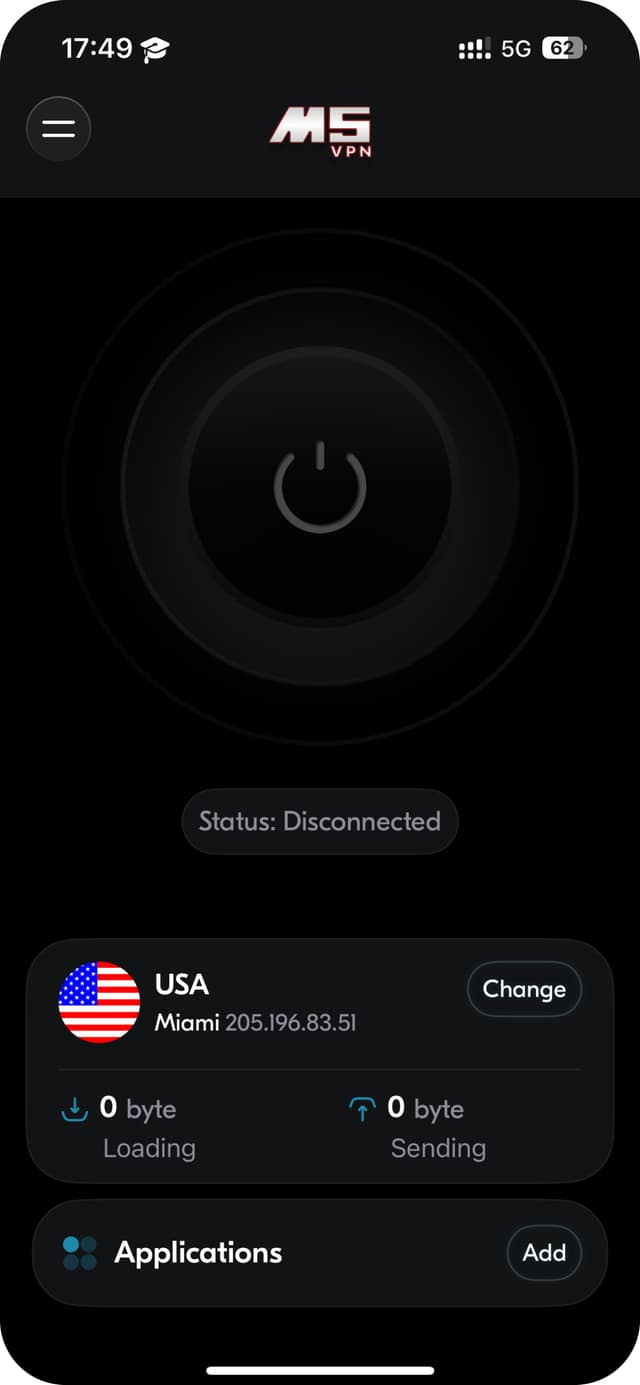

- Dark minimalist UI with traffic statistics
- Network Extension with PacketTunnelProvider
- Clean MVVM architecture

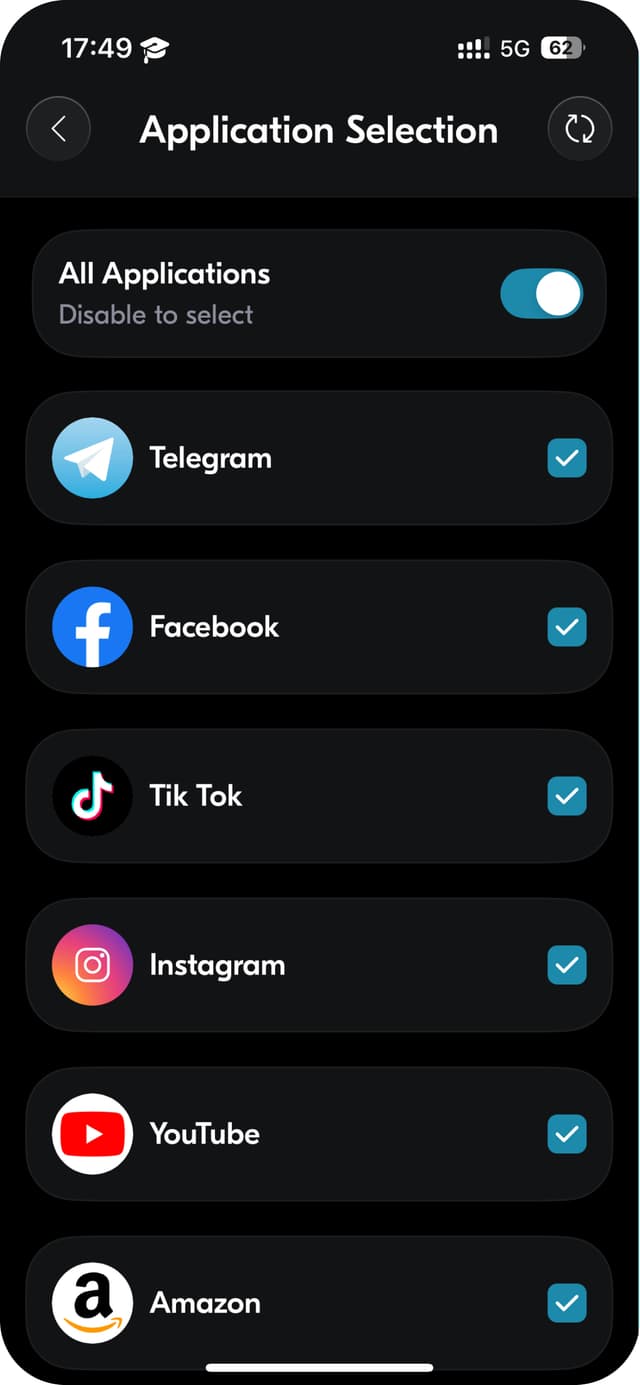

- Android version: split tunnelling, live speed display, automatic reconnect, push notifications
Role & timeline
iOS: SwiftUI, NetworkExtension, Xray/VLESS integration, 4 weeks. Android: Vladimir Samoylov, MeerMost co-founder — Kotlin, Compose, VLESS core
The same team builds and runs its own VPN service: MeerGuard VPN
FAQ
Who built M5VPN?
M5VPN was built for a client by the MeerMost team. The same team builds its own VPN service, MeerGuard.
